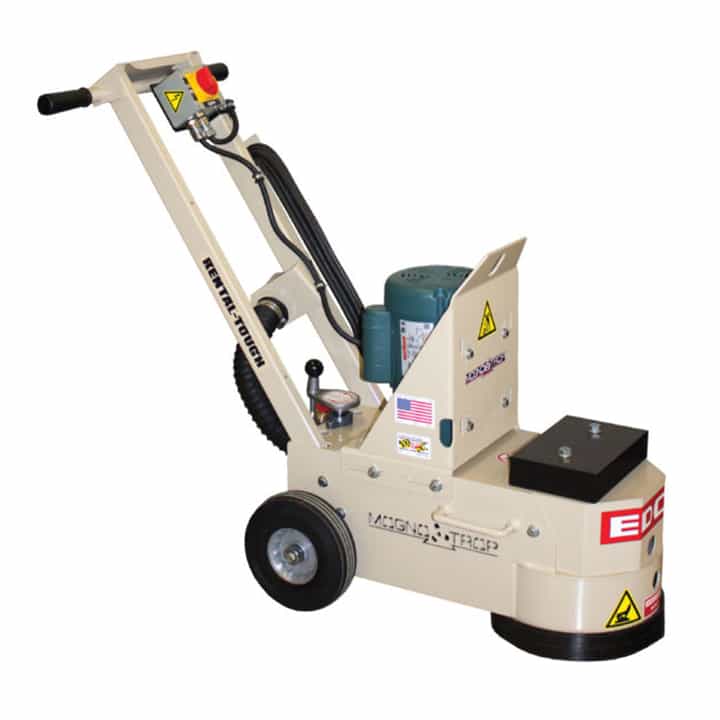

EDCO Magna-Trap® Single Disc Concrete Floor Grinder

EDCO Dual Head Floor Grinder

Magna-Trap® Floor Grinders combine leveling systems, better dust control, and accessories to create superior surface preparation machines.

  • NEW Multi-Tooling Disc with carbide pockets. Bolt tungsten carbides directly onto the disc for stripping applications.
  • GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s Magna-Trap® Slide-On Tooling.
  • GRIND LEVEL: Using EDCO’s exclusive Leveling System Hand Wheel you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator , and increases accessory life.
  • VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used.
  • Extra Weight Standard: This bolted-on weight tray helps the machine work. Use when needed
  • Multi-Vac port for use with 2″ or 3″ vacuum hose
  • 11″ working width will grind approximately 200-250 sq.ft. per hour at 1/32″ with EDCO Magna-Trap® Dyma-Dots
  • Electric machine plugs into dedicated residential wall outlets
  • Includes 1 magnetic multi-accessory disc with carbide pockets, which accepts all Magna-Trap® accessories.

Play EDCO Magna-Trap® Floor Grinder Video

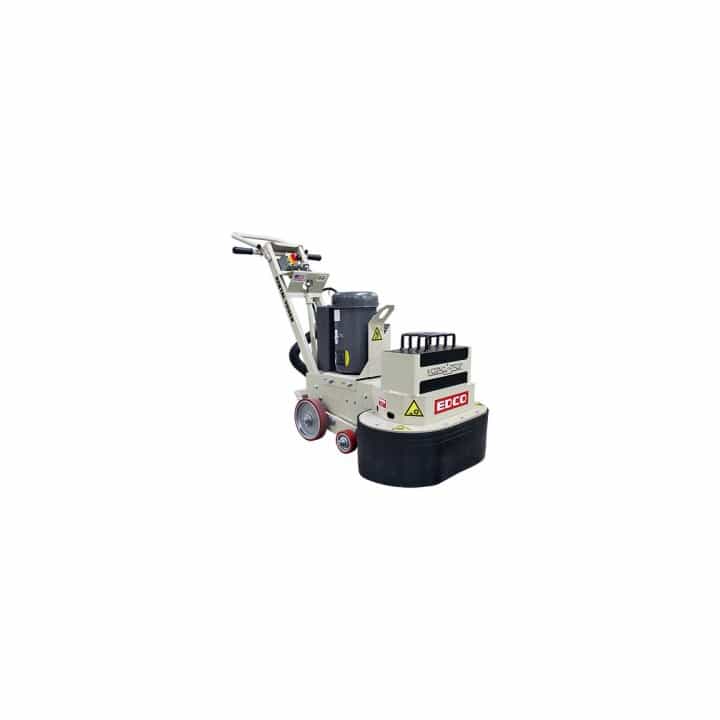

EDCO Dual Head Floor Grinder (2EC/GC-NG)

EDCO Dual Head Floor Grinder

The floor grinder is used for topical applications up to a 1/16" deep. They are used for smoothing, cleaning, thin coating removal, and prepping surfaces. Concrete floor grinders are contractor and homeowner friendly.

The Dual Head Floor Grinder's 22" working width will grind approximately 400-500 square feet per hour at 1/32" with EDCO dyma-serts

The Counter Rotating Discs prevent the machine from pulling side to side and give operator greater control.

Ideal For:

  • Production grinding and floor cleaning on large or small surfaces such as airports, warehouses, parking decks, manufacturing plants, malls and sports arenas.
  • Light grinding or cleaning of concrete surfaces
  • Leveling uneven joints
  • Removing mastics, thin-set, high spots, epoxies and urethanes
  • Lightly texturing slippery concrete surfaces

Play EDCO Dual Head Floor Grinder Video

EDCO Floor Grinder with Diamonds Bits

EDCO Floor Grinder with Diamonds Bits

The floor grinder is used for topical applications up to a 1/16" deep. They are used for smoothing, cleaning, thin coating removal, and prepping surfaces. Concrete floor grinders are contractor and homeowner friendly.

Ideal For:

  • Areas less than 1,500 square feet
  • Residential applications
  • Grinding Concrete
  • Repairing damaged concrete slabs
  • Removing urethanes or epoxy thin-coats
  • Leveling high spots or surface imperfections
  • Smoothing rough surfaces, rain marks or trowel marks
  • Removing mastics, thin-sets, paint build-ups, resins, and more

Play EDCO Floor Grinder with Diamonds Bits Video
